When wiring a transfer switch, I confirm I check that the capacity matches my system’s load, review local permits and codes, and verify proper grounding and wiring connections. Additionally, I verify safety features like overload protection, inspect for weatherproofing if outdoor, and document everything thoroughly. I also confirm compatibility with my generator type and voltage, and I follow manufacturer instructions carefully. Keep going, and you’ll discover more tips to make your installation safe and compliant.
Key Takeaways
- Confirm compliance with NEC and local electrical codes before starting transfer switch wiring.
- Obtain necessary permits and approvals from local building authorities prior to installation.
- Ensure proper wiring of power sources, load connections, and control circuits according to manufacturer specifications.
- Verify grounding, bonding, and circuit protection measures meet safety standards and code requirements.
- Schedule inspections and obtain approval from licensed electrical inspectors before energizing the system.

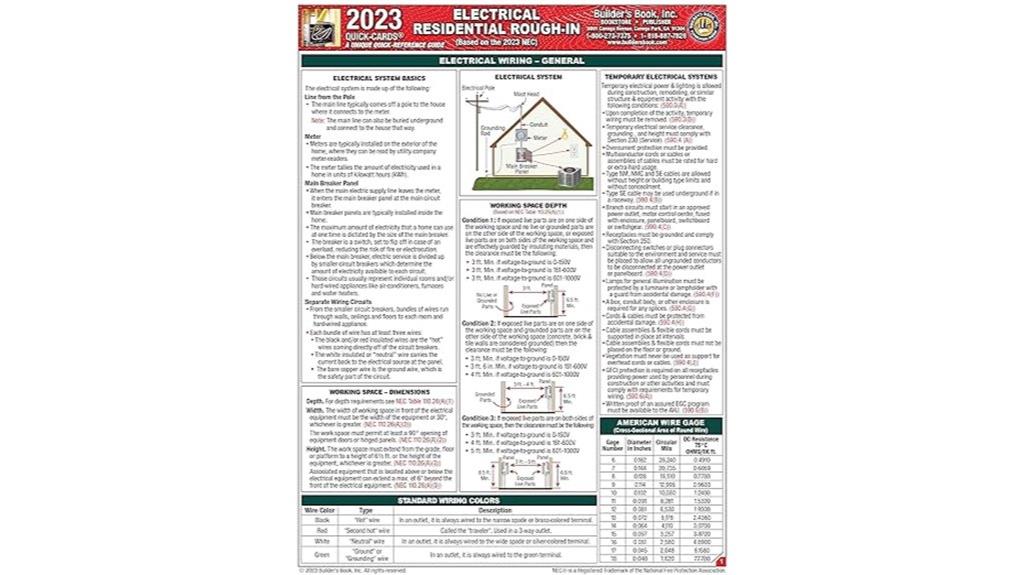

Electrical Residential Rough-In Quick-Card Based on the 2023 NEC
The Transfer Switch Wiring Checklist is an essential resource for electrical contractors and technicians who need quick, accurate guidance on wiring transfer switches in residential settings. The Electrical Residential Rough-In Quick-Card based on the 2023 NEC provides a compact, UV-coated, 6-page reference that’s perfect for on-the-job use. It covers wiring standards, color codes, and box types, helping guarantee compliance and safety. The guide details rough-in components, box volume allowances, and circuit calculations, streamlining the installation process. With clear symbols and notation formats, it promotes accurate plan interpretation and reduces errors, making it a must-have for efficient, code-compliant residential wiring projects.
Best For: electrical contractors, technicians, and apprentices working on residential rough-in projects requiring quick, reliable reference to the 2023 NEC standards.
Pros:
- Compact, durable UV-coated 6-page quick-card for on-the-job use
- Covers wiring standards, color codes, box types, and circuit calculations for comprehensive guidance
- Promotes safety, accuracy, and code compliance with clear symbols and notation formats
Cons:
- Limited to residential rough-in applications, not suitable for commercial or industrial projects
- May require supplemental detailed codes or manuals for complex wiring scenarios
- Small size might be less ideal for detailed reference during intricate installations
Electrical Panel Inspection Checklist Log Book (8.5 x 11 inches, 100 pages)
If you’re responsible for maintaining electrical safety and want an organized way to document panel inspections, the Electrical Panel Inspection Checklist Log Book is an excellent choice. This 8.5 x 11-inch, 100-page log book provides a structured, thorough framework for evaluating circuit breakers, wiring, grounding, and bonding. Its organized layout streamlines inspections, making it easier to identify issues and ensure compliance with safety standards. Plus, with space for notes and comments, you can document detailed observations. Whether for professional or personal use, this log book helps keep your electrical panels in check and maintains safety standards efficiently.
Best For: professionals and homeowners who need a comprehensive, organized tool to document and evaluate electrical panel inspections for safety and compliance.
Pros:
- Provides a detailed and structured framework for thorough inspections
- Includes customizable columns for tailored reporting needs
- Compact and portable at 8.5 x 11 inches with 100 pages for extensive documentation
Cons:
- May be too detailed for casual or infrequent inspections
- Limited to one size and format, reducing flexibility for different documentation styles
- Requires manual entry, which can be time-consuming during busy inspections
Black & Decker Wiring Guide (8th Edition, 2020-2023)
Designed for DIY homeowners and electricians alike, the Black & Decker Wiring Guide (8th Edition, 2020-2023) offers clear, step-by-step instructions for safely wiring transfer switches. As North America’s best-selling home wiring manual for over 15 years, it’s updated with the latest 2020-2023 electrical codes. The guide covers wiring techniques, safety protocols, and code compliance, supported by over 800 color photos and detailed diagrams. It provides practical guidance for common projects like backup power systems and lighting repairs. Created and reviewed by professional electricians, it ensures you follow current standards, making your transfer switch wiring safe, efficient, and compliant.
Best For: DIY homeowners and electricians seeking a comprehensive, up-to-date guide for wiring transfer switches safely and efficiently.
Pros:
- Updated with the latest 2020-2023 electrical codes ensuring compliance
- Over 800 detailed color photos and diagrams for clear instructions
- Created and reviewed by professional electricians for reliable guidance
Cons:
- May be overwhelming for complete beginners without basic electrical knowledge
- Focused primarily on North American standards, limiting international applicability
- Slightly bulky due to extensive visual content, which may be less portable
Ultimate Guide Wiring, 10th Edition: Home Electrical Installations
Homeowners and DIY enthusiasts seeking a reliable, step-by-step guide for wiring transfer switches will find the “Ultimate Guide Wiring, 10th Edition” particularly helpful. This all-inclusive resource covers residential electrical systems, including installing switches, outlets, lighting, and outdoor wiring. It offers clear instructions, detailed illustrations, and photos to simplify complex tasks. The guide emphasizes safety, modern standards like the NEC, and upgrades such as smart home automation and LED lighting. Whether you’re running wiring between rooms, adding circuits, or setting up emergency systems, this book equips you with the practical skills needed to perform installations confidently and safely.
Best For: DIY homeowners and electrical enthusiasts looking for a comprehensive, step-by-step guide to safely install and upgrade residential wiring systems, including emergency and smart home features.
Pros:
- Provides detailed instructions, illustrations, and photos for complex wiring tasks.
- Covers modern electrical standards like the NEC and new technologies such as smart home automation and LED lighting.
- Emphasizes safety and best practices, helping users perform reliable repairs and installations confidently.
Cons:
- May require some basic electrical knowledge to fully understand advanced topics.
- The extensive content could be overwhelming for complete beginners with no prior experience.
- Not a substitute for professional electrical work in complex or code-compliant installations.
Black and Decker Advanced Home Wiring Book (2023-2026 Codes)
The Black and Decker Advanced Home Wiring Book (2023-2026 Codes) stands out as an essential resource for experienced DIY enthusiasts and electricians working on complex wiring projects, like installing transfer switches. It aligns with the latest electrical codes, covering advanced topics such as three-way switches, neutral requirements, weatherproof boxes, conduit, and 240-volt circuitry. The book emphasizes safety procedures and thorough planning, including equipment selection and wiring layouts. It also offers guidance for wiring kitchens, room additions, and troubleshooting common issues. With detailed instructions, illustrations, and resource insights, this edition makes tackling sophisticated wiring tasks more manageable and compliant.
Best For: Experienced DIY enthusiasts and professional electricians seeking comprehensive guidance on complex, code-compliant wiring projects including three-phase power, 240-volt circuits, and advanced safety procedures.
Pros:
- Provides detailed, code-aligned instructions for sophisticated wiring tasks.
- Covers a wide range of advanced topics such as neutral requirements, conduit, and weatherproof boxes.
- Includes clear illustrations and resource insights for effective troubleshooting and planning.
Cons:
- May be overwhelming for beginners due to the technical complexity.
- Requires prior electrical knowledge or experience to fully understand the content.
- The detailed nature of the book might necessitate additional reference materials for complete comprehension.

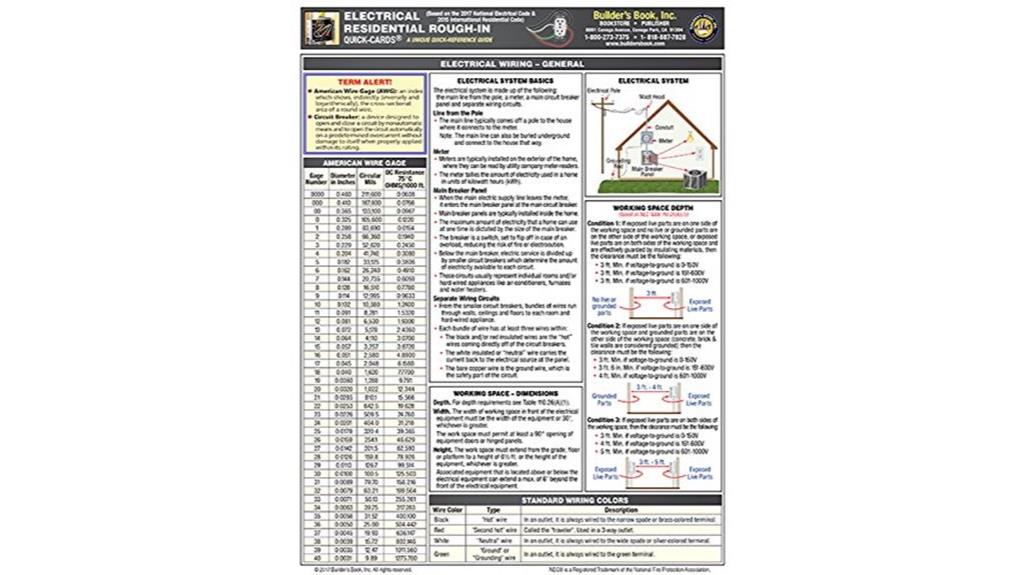

Electrical Residential Rough-In Quick-Card Based on the 2017 NEC and 2015 IRC
If you’re working on residential electrical rough-ins and need quick, reliable guidance, the Electrical Residential Rough-In Quick-Card based on the 2017 NEC and 2015 IRC is an excellent resource. This laminated 6-page guide offers essential info for interpreting architectural plans and engineering drawings, including symbols, notation formats, and common alternatives. It covers wiring standards, box types, sizes, and volume calculations, ensuring compliance with code requirements. Additionally, it provides practical details on branch circuits, outlet placement, and load calculations. Using this quick-card helps streamline your rough-in process, reduces errors, and keeps your project aligned with the latest electrical codes.
Best For: Electrical contractors, electricians, and builders seeking a quick reference guide to ensure code-compliant residential rough-in wiring and installation practices.
Pros:
- Concise, laminated 6-page format for durability and portability
- Covers essential symbols, notation, and wiring standards for quick reference
- Helps ensure compliance with 2017 NEC and 2015 IRC, reducing errors and project delays
Cons:
- Limited to residential rough-in; does not cover advanced or specialized electrical systems
- May require supplementary detailed code books for comprehensive troubleshooting
- The quick-card may become outdated if codes are amended after publication

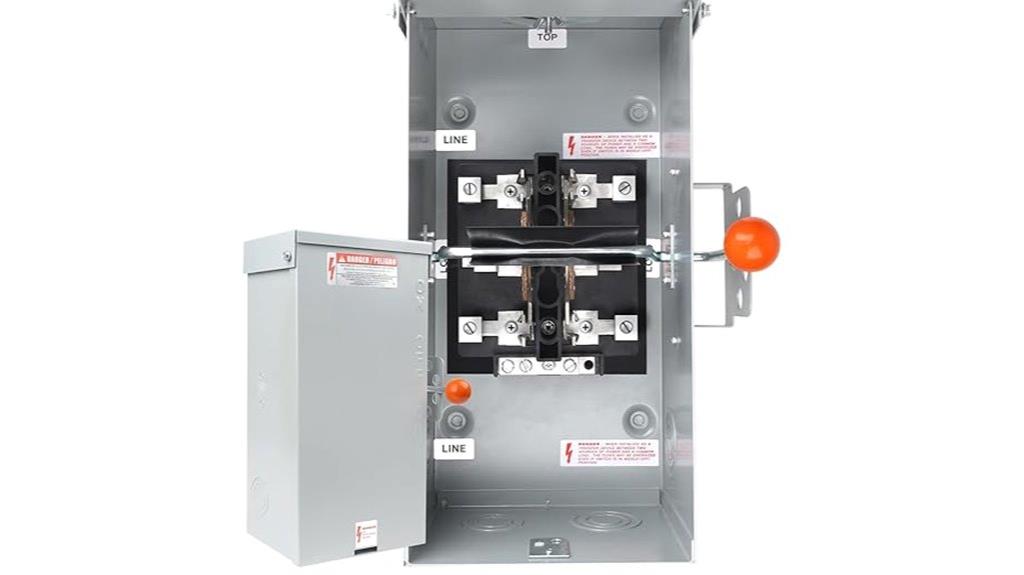

100A Generator Transfer Switch for Indoor and Outdoor Use
A generator transfer switch designed for both indoor and outdoor use offers unmatched versatility and safety, making it an ideal choice for anyone installing a system capable of handling high power loads. The 100A switch supports up to 24,000W, enabling whole-home power, including high-demand appliances like dryers and stoves. Its heavy-duty double throw safety design with a lock hole guarantees secure operation, while the galvanized steel casing meets NEMA 3R standards, resisting corrosion and harsh weather. Easy to install, it includes detailed instructions and supports wires up to 3 AWG. With over 10 years of reliable performance and a 10-year warranty, it’s built for durability and peace of mind.
Best For: Homeowners and electricians seeking a durable, versatile transfer switch capable of handling high power loads for both indoor and outdoor installations.
Pros:
- Supports up to 24,000W, suitable for whole-home backup including high-demand appliances
- Heavy-duty double throw safety design with lock hole for secure operation
- Constructed with corrosion-resistant galvanized steel meeting NEMA 3R standards, ideal for harsh weather
Cons:
- Installation is recommended to be performed by a professional electrician, which may add to initial setup costs
- No electronic components, which means no remote monitoring or automation features
- Larger NEMA 3R enclosure may require more space for installation
100Amp AC110V Automatic/Manual Transfer Switch
For those installing or maintaining a 100Amp AC110V Automatic/Manual Transfer Switch, ensuring correct wiring is critical to safety and reliable operation. This switch supports both automatic and manual modes, switching seamlessly within 0.05 seconds to maintain power continuity. It’s designed for 110V systems with a 100A capacity, suitable for homes, RVs, and solar setups. Proper wiring involves connecting the two power sources, the load, and control wiring for auto/manual modes, following manufacturer instructions. Adequate grounding and protection measures are essential to prevent faults. Correct wiring guarantees the switch functions safely, reliably, and in compliance with electrical codes.
Best For: homeowners, RV owners, and small-scale solar system users seeking reliable automatic/manual transfer switching for 110V, 100A power setups.
Pros:
- Fast transfer within 0.05 seconds ensures minimal power disruption
- Supports both automatic and manual operation modes for versatile use
- Suitable for indoor and outdoor installations with comprehensive protection features
Cons:
- Installation requires careful wiring to ensure safety and compliance
- Limited to 110V systems, not compatible with higher voltage setups
- May be more complex for users unfamiliar with electrical systems and wiring procedures
Generator Interlock Kit for Square D QO and Homeline Panels
The Generator Interlock Kit for Square D QO and Homeline Panels stands out as an essential safety solution for homeowners who want a reliable way to connect their portable generator to their home’s electrical system. It’s compatible with 150/200 amp panels and requires a 1 3/8-inch spacing between the main and generator breaker. The kit includes an interlock plate, screws, labels, zip ties, and installation tools, making setup straightforward without extra wiring or control boxes. Its steel construction ensures durability, and it prevents backfeed, safeguarding your home and utility workers during outages. Overall, it’s a simple, effective, and safe way to ensure your generator connection is secure.
Best For: homeowners seeking a safe, easy-to-install generator interlock solution for Square D QO and Homeline panels to prevent backfeed during power outages.
Pros:
- Easy installation with included tools and no need for extra wiring or control boxes.
- Durable steel construction ensures long-lasting performance.
- Compatible with 150/200 amp panels and meets safety standards to prevent backfeed.
Cons:
- Requires a specific 1 3/8-inch spacing between main and generator breaker, which may not fit all panels.
- Limited to use with Square D QO and Homeline panels only.
- Some users may find the need for precise measurement during installation to ensure proper fit.
Generator Interlock Kit for Eaton Cutler Hammer BR Series Panels
If you’re working with Eaton/Cutler Hammer BR Series panels that have plug-in neutrals and need a safe, cost-effective way to back up your home during power outages, the Generator Interlock Kit is an excellent choice. It’s compatible with 150 and 200-amp main breakers and prevents the main and generator breakers from being on simultaneously, ensuring safety. The kit features a single handle for easy switching from off to on, with proper spacing between breakers. It’s simple to install, includes all necessary hardware, labels, and instructions. Overall, it provides a reliable backup solution without the expense and complexity of manual transfer switches.
Best For: homeowners with Eaton/Cutler Hammer BR Series panels seeking a safe, cost-effective backup power solution during outages.
Pros:
- Ensures safe operation by preventing simultaneous main and generator breaker engagement
- Easy to install with all necessary hardware and clear instructions included
- Compatible with 150 and 200 amp main breakers, suitable for various panel configurations
Cons:
- Limited to Eaton/Cutler Hammer BR Series panels with plug-in neutrals
- Requires some basic electrical knowledge for proper installation
- Does not include a transfer switch, which may be preferred for more complex backup setups

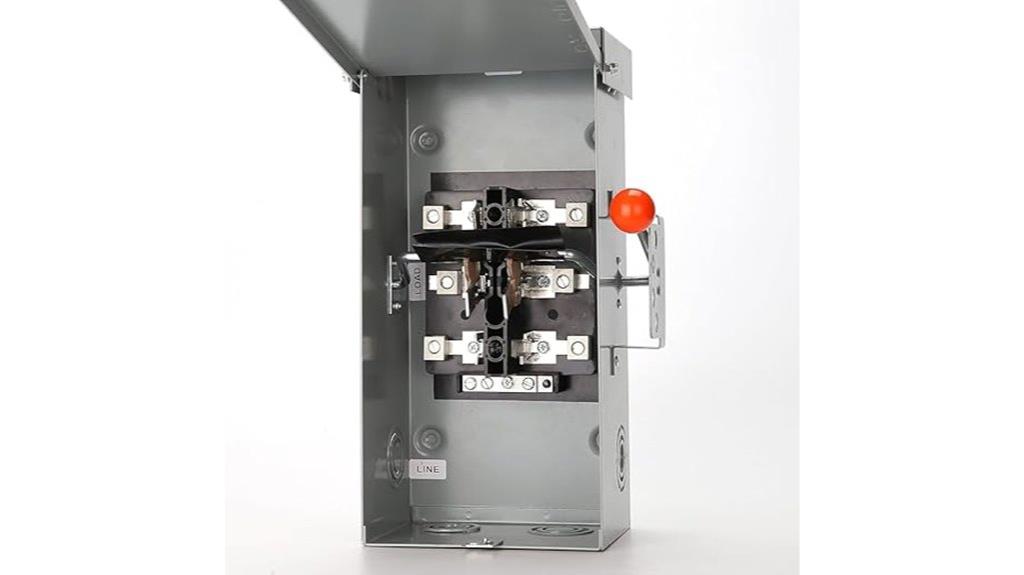

100A Generator Transfer Switch, 24000W Double-Throw Safety Switch
A 24,000W double-throw safety switch is an excellent choice for homeowners who want a reliable, heavy-duty transfer switch capable of handling large loads. This 100A model switches power seamlessly between the grid and backup sources like generators or solar systems. Its galvanized steel casing offers durability, corrosion resistance, and compliance with NEMA 3R standards for outdoor and indoor use. The manual operation is straightforward, with aluminum connections that resist moisture and dust. Safety features like a lock hole prevent accidental shutdowns, and internal grounding enhances protection. Designed for easy installation and long-term reliability, this switch guarantees your home stays powered safely during outages.
Best For: homeowners seeking a durable, high-capacity transfer switch to safely manage power between the grid and backup sources like generators or solar systems.
Pros:
- Handles up to 24,000W and 100A, suitable for whole-house power needs
- Robust galvanized steel casing with weather-resistant NEMA 3R compliance
- Simple manual operation with moisture and dust-resistant aluminum connections
Cons:
- Requires professional installation for optimal safety and compliance
- Manual operation may be less convenient during frequent power outages
- Larger size and weight may require additional space for installation
Generac 200 Amp Single Phase Generator Transfer Switch
Designed for single-phase generators with Evolution or Nexus controllers, the Generac 200 Amp Single Phase Generator Transfer Switch is an excellent choice for homeowners and professionals needing a dependable, service entrance-rated device. It’s UL listed and suitable for indoor or outdoor installation, featuring a durable NEMA 3R aluminum enclosure. This switch automatically transfers power between utility and generator, ensuring seamless operation during outages. It manages up to four HVAC loads via advanced Digital Power Management technology without extra hardware. With a 5-year warranty, built-in service disconnect, and safety features, it offers reliable, safe, and efficient power transfer for your home or business.
Best For: homeowners and professionals seeking a reliable, service entrance-rated automatic transfer switch for single-phase generators with Evolution or Nexus controllers.
Pros:
- Seamless automatic transfer between utility and generator power, ensuring continuous operation
- Manages up to four HVAC loads efficiently without additional hardware through Digital Power Management technology
- Durable NEMA 3R aluminum enclosure suitable for indoor and outdoor installations, backed by a 5-year warranty
Cons:
- Installation requires certified, licensed electricians, which may increase setup costs
- Only compatible with single-phase generators utilizing Evolution or Nexus controllers, limiting versatility
- Slightly heavy (39 pounds) and large, potentially requiring adequate space for installation
A510C Pro/Tran2 50-Amp 10-Circuit 2 Manual Transfer Switch
The A510C Pro/Tran2 50-Amp 10-Circuit 2 Manual Transfer Switch stands out for its robust construction and compliance with UL standard 1008, making it an excellent choice for professional electricians and experienced DIYers. Made in the USA, it features a painted steel cabinet with a steel finish, ensuring durability and protection. Its compact dimensions—11.25 inches high, 11.75 inches wide, and 4.5 inches deep—fit easily into various setups. With a full manufacturer warranty and UL listing, this switch offers reliable performance, safety, and compliance with the national electrical code, making it a solid choice for managing power transfer in residential or small commercial applications.
Best For: professional electricians and experienced DIYers seeking a durable, UL-listed manual transfer switch for residential or small commercial power management.
Pros:
- Made in the USA with robust steel construction for durability
- UL listed to UL standard 1008, ensuring safety and compliance
- Compact dimensions that fit easily into various setups
Cons:
- Manual operation may not be suitable for those seeking automatic transfer solutions
- Heavier weight of 19 lbs could be cumbersome for installation in tight spaces
- Limited to 10 circuits, which may not meet the needs of larger systems
Vevor Manual Transfer Kit for Generators
If you’re looking for a reliable transfer switch that’s easy to install and operate, the Vevor Manual Transfer Kit for Generators is an excellent choice. It handles up to 30A and 10 circuits, making it suitable for 7500W generators. The double-throw switch allows quick, safe switching from main power to generator with a simple flip, while the built-in mini circuit breaker prevents overcurrent. Its weatherproof NEMA 3R enclosure ensures durability outdoors. Pre-wired with clear labeling, installation is straightforward. Plus, the included power input box with L14-30 plug and protective lid add to its safety and convenience, making it a dependable solution for backup power needs.
Best For: homeowners and small business owners seeking a reliable, outdoor-compatible transfer switch for seamless generator power switching.
Pros:
- Easy installation with pre-wired, clearly labeled wiring for straightforward setup
- Durable weatherproof NEMA 3R enclosure suitable for outdoor use
- Built-in mini circuit breaker and mechanical watt meter enhance safety and monitoring
Cons:
- Limited to 30A capacity, not suitable for larger power loads
- Compatible primarily with 7500W generators, restricting versatility for bigger generators
- Manual operation requires user intervention to switch power sources
JONASC 220V 63A 2P Automatic Transfer Switch
For those installing a JONASC 220V 63A 2P Automatic Transfer Switch, a thorough wiring checklist is essential to guarantee safe and reliable operation. Make sure the switch is compatible with your power supply, supporting both automatic and manual modes, with proper phase voltage detection. Connect the EPS fire power supply interface and ensure the DC12-24V double point connection is secure for long-distance reliability. Verify protections like short circuit, overload, phase loss, and undervoltage are enabled. Follow the easy installation instructions, attach the protective cover, and confirm all wiring is correctly routed to prevent faults. Proper wiring ensures continuous power to critical circuits, especially in fire safety environments.
Best For: those seeking a reliable automatic transfer switch for home, office, or public building fire safety applications requiring seamless power source switching and comprehensive protection features.
Pros:
- Supports automatic and manual operation with phase voltage detection for versatile use
- Equipped with multiple protections including short circuit, overload, phase loss, and undervoltage safeguards
- Compact, easy to install with a protective cover, suitable for various environments
Cons:
- Requires proper wiring and compatibility checks with existing power supply systems
- May need professional installation to ensure correct wiring and protection setup
- Limited to 220V 63A capacity, which may not be suitable for higher power requirements
Factors to Consider When Choosing a Transfer Switch Wiring Permit Checklist
When selecting a transfer switch wiring permit checklist, I consider factors like local code requirements and safety standards to verify compliance. I also evaluate the electrical load capacity and wiring compatibility to match the system’s needs. Finally, I review the permit application process to make sure everything’s in order before starting the project.
Local Code Requirements
Understanding and complying with local code requirements is essential before installing a transfer switch. First, I verify that the wiring adheres to the National Electrical Code (NEC) and any local amendments or additions. I also ensure I obtain all necessary permits from the local building department before starting any electrical work. It’s important to confirm that the wiring methods, conduit types, and box sizes meet specific local requirements. Additionally, I check for any restrictions or special rules for outdoor or indoor installations in my jurisdiction. Finally, I make sure the installation is inspected and approved by a licensed electrical inspector, documenting the approval before completing the project. Following these steps helps ensure my installation is safe, compliant, and ready for operation.
Electrical Load Capacity
Choosing the right transfer switch begins with accurately evaluating the electrical load it needs to handle. I always make certain the switch’s amperage rating matches or exceeds the total load of the circuits it controls. To do this, I calculate the total wattage of connected appliances and divide by the voltage to find the required current capacity. It’s also smart to contemplate future expansion—adding more circuits or appliances—so I select a switch with a higher load capacity. I verify that the transfer switch can handle multiple high-demand devices operating simultaneously without overload. Finally, I check that the switch aligns with electrical codes and manufacturer specifications, confirming its maximum load capacity. This careful evaluation helps prevent overloads and ensures reliable operation during power outages.
Wiring Compatibility Needs
Ensuring wiring compatibility is crucial for a safe and reliable transfer switch installation. I always double-check that the switch matches my home’s voltage, whether 120V or 240V, to prevent issues. It’s necessary to verify that the transfer switch supports the number of circuits and load capacity my appliances need. I also confirm the wiring type—copper or aluminum—aligns with the switch’s specifications for safety. Matching the wire gauge (AWG) to the terminal connections ensures secure connections and prevents overheating. Additionally, I consider the environment; if my installation is outdoors, I choose a switch rated for outdoor use to resist corrosion and damage. Proper compatibility guarantees smooth operation and helps avoid costly problems down the line.
Permit Application Process
When installing a transfer switch, completing the permit application process correctly is a vital step to guarantee everything meets safety standards. I recommend submitting detailed wiring plans and load calculations to the local building authority, ensuring your diagrams align with the NEC and any local amendments. A thorough permit checklist should include documentation of electrical system specs, safety features, and equipment ratings. It’s essential to double-check that all information is accurate and complete before submission. Once approved, inspections are scheduled to verify compliance and safe installation. Failing to obtain the proper permit or submitting incomplete documentation can lead to fines, delays, or costly rework. Taking these steps seriously helps guarantee your transfer switch setup is safe, compliant, and approved without unnecessary issues.
Safety Compliance Standards
Safety compliance standards are essential when selecting a transfer switch wiring permit checklist because they guarantee your installation meets all necessary electrical safety requirements. I always verify the wiring conforms to the National Electrical Code (NEC), especially regarding safety and proper grounding. It’s critical to confirm that all wiring methods suit the installation environment, like outdoor or wet locations, to prevent hazards. I also check that all components, connectors, and materials are rated for the correct amperage and voltage, reducing the risk of failure. Including overload protection devices and interlocks is important to prevent backfeeding and electrical accidents. Finally, I make sure to obtain all permits and inspections, confirming the wiring complies with local codes and safety regulations before energizing the system.
Frequently Asked Questions
What Are the Common Mistakes to Avoid During Transfer Switch Wiring?
One common mistake I see is neglecting proper grounding, which can cause serious safety issues. I also avoid rushing through connections, as loose wires or incorrect terminations can lead to failures or hazards. Overlooking manufacturer instructions or skipping testing before finalizing wiring are mistakes I stay away from, because they compromise safety and system reliability. Paying close attention to detail and following all guidelines helps ensure a safe, compliant installation.
How Do I Determine the Correct Wire Gauge for My Transfer Switch?
I determine the right wire gauge for my transfer switch by considering the amperage load and distance. I check the manufacturer’s specifications and follow NEC guidelines, typically using a wire gauge chart. For higher loads, I opt for thicker wire, usually 6 or 8 AWG, to prevent overheating. Always double-check with local codes and consult an electrician if unsure, ensuring safety and proper operation.
Are There Specific Grounding Requirements for Transfer Switch Installations?
Yes, there are specific grounding requirements for transfer switch installations. I always guarantee the transfer switch is properly grounded according to local electrical codes, typically using a grounding rod or grounding system connected to the main service panel. It’s vital that the grounding conductor is securely connected to the transfer switch’s grounding terminal. Proper grounding prevents electrical shock hazards and guarantees system stability during power transitions.
What Safety Precautions Should I Follow When Wiring a Transfer Switch?
When wiring a transfer switch, I always turn off the main power before starting to prevent shocks. I wear insulated gloves and use tools with insulated handles for added safety. I double-check all connections to make sure they’re secure and follow the manufacturer’s wiring diagram precisely. It’s essential to work in a dry environment and avoid rushing, so I stay focused and cautious throughout the process.
How Often Should Transfer Switch Wiring Be Inspected or Maintained?
Think of your transfer switch wiring as the heartbeat of your home’s power system. I recommend inspecting and maintaining it at least once a year, especially before storm seasons or outages. Regular checks guarantee all connections are tight and corrosion-free, preventing unexpected power failures. Staying vigilant keeps your system running smoothly, like a well-oiled engine, so you’re never left in the dark when you need it most.
Conclusion
So, after all this, you’d think wiring a transfer switch is a walk in the park. But don’t be fooled—miss a step, overlook a code, and you might find yourself in the dark or worse. Ironically, what seems simple can turn into a costly mistake. So, take your time, follow the checklist, and remember: a little caution now can save you from a shocking surprise later. Better safe than sorry, right?
