I’ve researched the top panel-mount SPD devices with 80kA surge capacity that provide maximum protection for homes, commercial, and industrial systems. These devices feature rapid response, robust construction, and compliance with safety standards like IEC/EN 61643-1. They come in various configurations, including 3 or 4 poles, suitable for different voltage systems. To find the best fit for your needs, consider surge capacity, system voltage, and installation environment—more details await those who continue.
Key Takeaways
- Top panel-mount SPDs rated at 80kA surge capacity ensure robust lightning and switching surge protection.
- Most models feature compact sizes (18mm-27mm) and DIN rail mounting for easy installation in panels.
- Certified to international standards like IEC/EN 61643-1, guaranteeing safety, reliability, and compliance.
- Suitable for various systems including residential, commercial, and industrial with voltages up to 420V AC.
- Key features include rapid response times under 25ns, multiple poles configurations, and options for remote monitoring.

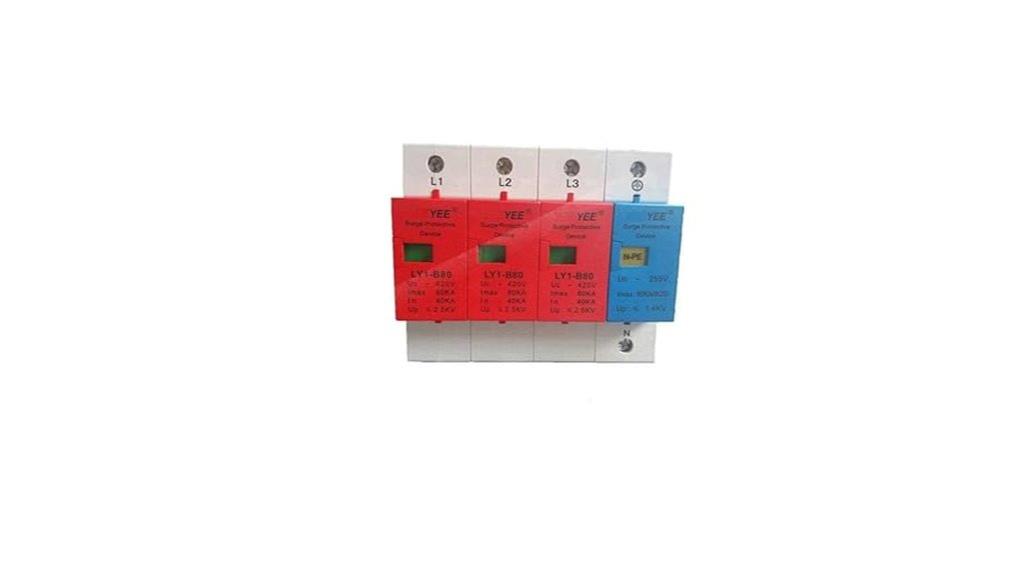

80KA 420V 4POLE Surge Protector Device
If you’re looking for a reliable surge protector for your electrical system, the KA 420V 4POLE Surge Protector Device is an excellent choice, especially for applications requiring rapid response and high current capacity. With a rated voltage of 380V AC and a maximum surge current of 80kA, it effectively safeguards against lightning and transient over-voltages. Its 4-pole design (3P+N) ensures thorough protection for three-phase systems plus neutral. The device responds in less than 25 nanoseconds, providing swift action to prevent damage. Compact at 18mm wide and easy to install on a standard 35mm DIN rail, it’s suitable for residential, commercial, and industrial environments.
Best For: commercial, industrial, and residential electrical systems requiring high-capacity surge protection with rapid response.
Pros:
- Provides excellent protection with a high maximum surge current of 80kA.
- Fast response time of less than 25 nanoseconds to mitigate transient over-voltage events.
- Compact design (18mm wide) and easy installation on standard 35mm DIN rails.
Cons:
- May be over-specification for small-scale or low-voltage applications.
- Requires proper wiring and installation by qualified personnel to ensure safety.
- Limited to environments with humidity up to 95%, which may not suit extremely humid conditions.
80KA 420V 4-Pole Surge Protector (SPD House Surge Arrester)
The KA 420V 4-Pole Surge Protector (SPD House Surge Arrester) stands out as an ideal choice for three-phase power distribution systems that demand dependable lightning and surge protection. With an 80kA discharge capacity and a maximum continuous operating voltage of 420V, it effectively safeguards electrical systems against transient over-voltages from lightning strikes or switching surges. Its four-pole design (three-phase plus neutral) ensures exhaustive coverage, while its compact 27mm width allows easy installation on standard rails. Certified to IEC/EN 61643-1 and GB18802-1 standards, this device provides fast response times under 25ns, ensuring rapid protection for residential or commercial applications.
Best For: residential and commercial three-phase power distribution systems requiring reliable lightning and surge protection.
Pros:
- High discharge capacity of 80kA provides robust surge protection.
- Fast response time under 25ns ensures immediate safeguarding against voltage surges.
- Compact 27mm width allows easy installation on standard 35mm rails.
Cons:
- Suitable primarily for low-voltage applications up to 420V AC, not for higher voltage systems.
- Requires proper installation to ensure maximum effectiveness and safety.
- May need periodic maintenance or replacement after prolonged surge events.
80KA 420V 4-Pole Surge Protector for House (SPD, Low-Voltage Arrester)
Designed for residential and small commercial electrical systems, the KA 420V 4-Pole Surge Protector offers reliable, rapid surge absorption, making it an ideal choice for safeguarding your home against lightning strikes and transient over-voltage events. With an 80KA maximum discharge current and response times under 25 nanoseconds, it quickly neutralizes surges to protect your equipment. Its four-pole design (3P+N-PE) ensures all-encompassing coverage for single-phase or three-phase systems, meeting international standards like IEC/EN 61643-1. Compact and easy to install on standard rails, this low-voltage arrester provides robust, dependable surge protection for your household electrical system.
Best For: homeowners and small businesses seeking reliable, rapid surge protection for residential or small commercial electrical systems against lightning and transient over-voltage events.
Pros:
- Rapid response time under 25 nanoseconds provides quick surge neutralization.
- High discharge current capacity of 80KA ensures robust surge absorption.
- Compact design and standard rail mounting make installation straightforward and space-efficient.
Cons:
- Suitable primarily for low-voltage applications; not for high-voltage industrial systems.
- Requires proper wiring and professional installation for optimal safety.
- May need periodic inspection or replacement after multiple surge events to maintain protection integrity.

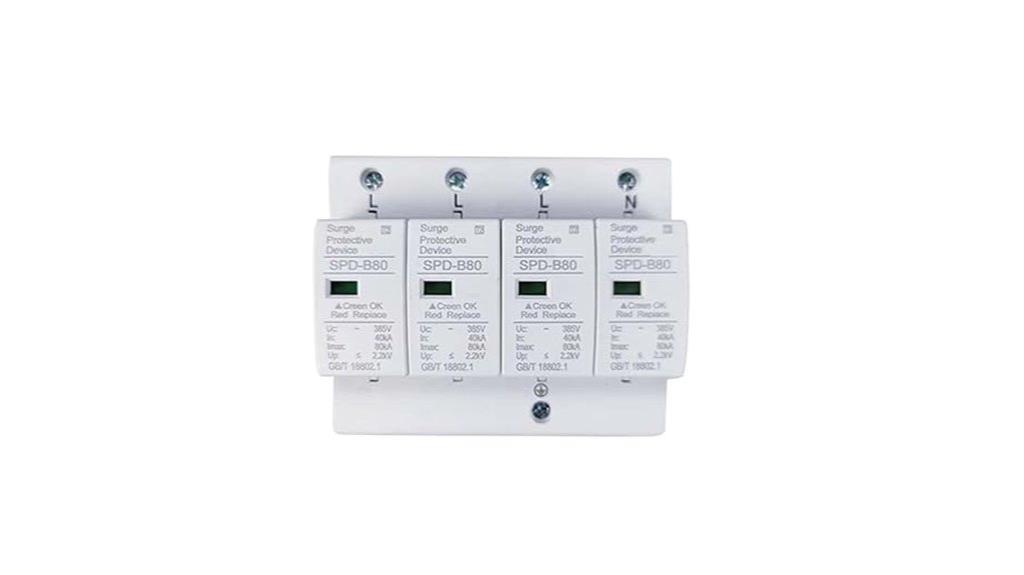

SPD 1P-4P AC Surge Protector (AC385V, 20-100KA)
For professionals seeking reliable protection for their power and communication systems, the SPD 1P-4P AC Surge Protector (AC385V, 20-100KA) offers an ideal solution. It supports various configurations, including single, two, three, and four-pole setups, with a voltage rating up to 440V AC and surge current capacities from 20KA to 100KA. Designed for residential, industrial, and tertiary applications, it effectively guards against transient overvoltages caused by lightning strikes and switching surges. Its robust build guarantees compatibility with 50/60Hz systems, providing dependable protection for electrical systems and equipment in diverse environments.
Best For: professionals and technicians seeking reliable surge protection for electrical and communication systems across residential, industrial, and tertiary environments.
Pros:
- Supports multiple configurations (1P-4P) to suit different system setups
- High surge current capacity up to 100KA for effective overvoltage protection
- Compatible with AC385V systems operating at 50/60Hz for versatile application
Cons:
- May require professional installation due to electrical complexity
- Limited information on specific installation procedures or certifications
- Not suitable for systems exceeding 440V AC rated voltage
SPD 1P-4P AC Surge Protector (AC385V, 20-100KA)
If you’re selecting surge protection for residential or industrial systems operating at up to 440V, the SPD 1P-4P AC Surge Protector (AC385V, 20-100KA) stands out as an ideal choice. It offers versatile configurations with 1 to 4 poles, making it suitable for various applications. Designed to handle transient overvoltages from lightning or other surges, it provides surge capacities up to 100KA. Its compact, easy-to-install design fits power and communication systems at AC 385V. With a short-circuit current capacity of 10kA, it assures reliable protection for electrical equipment across multiple sectors.
Best For: residential, tertiary, and industrial systems requiring reliable surge protection up to 440V with versatile pole configurations.
Pros:
- Suitable for a wide range of applications with 1 to 4 pole options.
- High surge capacity up to 100KA effectively safeguards against lightning and transient overvoltages.
- Compact and easy-to-install design makes integration straightforward.
Cons:
- Limited to AC rated voltages up to 440V, not suitable for higher voltage systems.
- Short-circuit current capacity of 10kA may be insufficient for very high fault current environments.
- Requires proper installation and maintenance to ensure optimal performance.
SPD 1P-4P AC Surge Protector (AC385V, 20KA-100KA)
Are you seeking a reliable surge protection solution that seamlessly integrates into your electrical systems? The SPD 1P-4P AC Surge Protector (AC385V, 20KA-100KA) is designed for both residential and industrial applications, protecting against lightning and over-voltage events. It supports single and multi-phase systems, including 1P, 2P, 3P, and 4P configurations, with a short-circuit current capacity of up to 10kA. Its compact design incorporates miniature circuit breakers, making installation straightforward. With high energy absorption capacities ranging from 20KA to 100KA, this device ensures your electrical systems stay safe during transient surges.
Best For: residential, tertiary, and industrial users seeking reliable surge protection for their AC electrical systems across single-phase and multi-phase configurations.
Pros:
- Compatible with various voltages and phases (1P-4P, up to 440V).
- High energy absorption capacity up to 100KA for effective surge handling.
- Compact design with integrated miniature circuit breakers for easy installation.
Cons:
- May require professional installation for optimal safety and performance.
- Limited information on long-term durability and maintenance.
- Not suitable for systems exceeding 440V or with different surge current specifications.

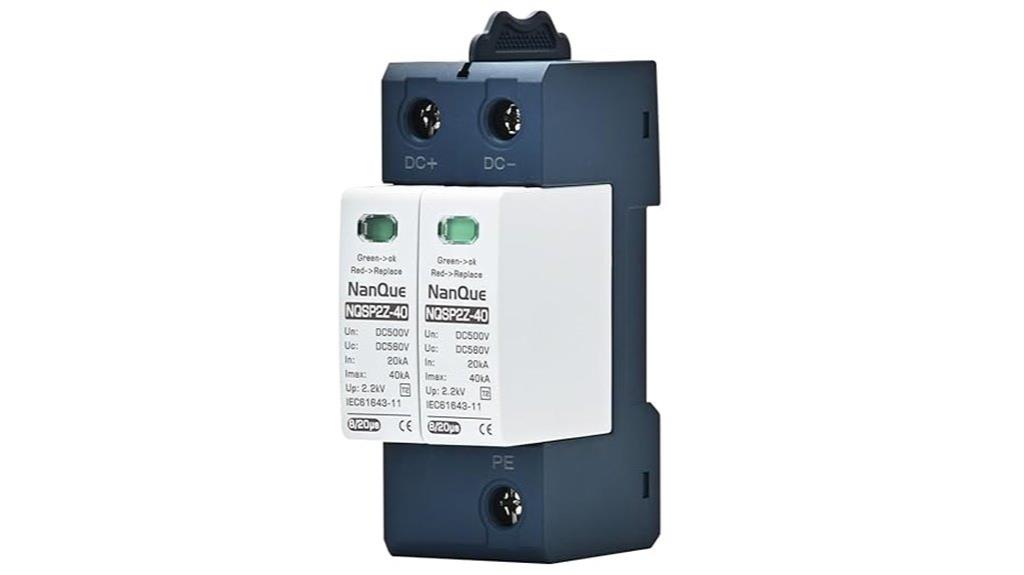

DC SPD Surge Protector for PV Systems
Looking to shield your PV system from lightning strikes and voltage surges? A DC SPD Surge Protector designed for 100V-1000V systems is essential. It features a 2-pole setup, 40kA T2 level, and a replaceable module for easy maintenance. Its high withstand capability and low clamping voltage quickly respond to voltage spikes, safeguarding sensitive equipment and prolonging system life. The thick chip design ensures durability under high current conditions, making it perfect for solar and renewable energy setups. Overvoltage protection adds an extra layer of security. Overall, this device offers reliable surge suppression, durability, and simple maintenance, ensuring your PV system stays protected.
Best For: homeowners and renewable energy installers seeking reliable lightning and surge protection for 100V-1000V PV systems to ensure system longevity and safety.
Pros:
- Offers high surge current capacity of 40kA T2 level for robust protection
- Replaceable module simplifies maintenance and reduces downtime
- Thick chip design provides durability and stable performance under high current conditions
Cons:
- May require professional installation due to electrical complexity
- Compatibility limited to PV systems within 100V-1000V range
- Potential higher initial cost compared to basic surge protection devices

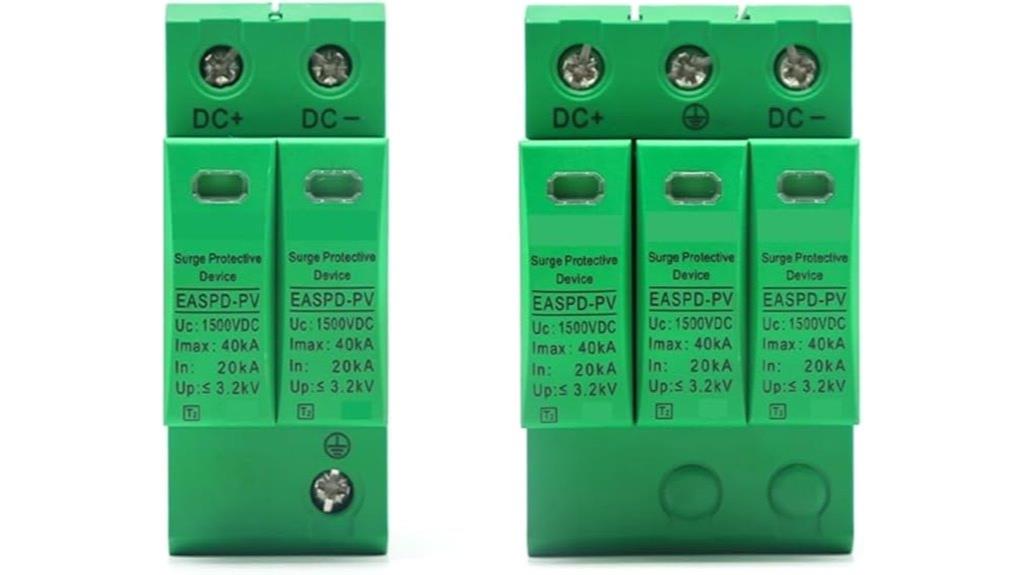

2P DC SPD Solar Power Surge Protector (800V)
The P DC SPD Solar Power Surge Protector (800V) stands out as an ideal choice for outdoor solar installations requiring reliable surge protection at high voltage levels. Its robust design suits photovoltaic systems, safeguarding against voltage spikes and surges. With models available up to 1500V and current capacities reaching 40kA, it offers flexible, high-performance protection. Mounting is simple on a 35mm DIN rail, and its compact size — just 1.18 inches long — makes installation straightforward. Manufactured by SAIYRMKQ in China, it’s built for durability and ease of use, with no assembly needed and a strong warranty, ensuring long-lasting, dependable protection for your solar setup.
Best For: homeowners, solar installers, and electrical professionals seeking reliable outdoor surge protection for high-voltage photovoltaic solar power systems.
Pros:
- Suitable for outdoor installation with IP20 protection level and robust design.
- Compatible with a range of voltage ratings up to 1500V and high discharge current capacity up to 40kA.
- Easy to install on a 35mm DIN rail with no assembly required, ensuring quick setup.
Cons:
- Limited to outdoor use with an IP20 degree of protection, which may require additional enclosures for harsh environments.
- Only available in single-piece packaging, potentially increasing costs for multiple units.
- Price varies depending on model and vendor, which might affect budget planning.
3-Pole 800V DC Surge Protector for Solar Power System
If you’re installing outdoor solar power systems that require reliable surge protection, the Pole 800V DC Surge Protector is an ideal choice. It features a 3-pole design suitable for both 2P and 3P configurations, with voltage ratings up to 1200V. Its surge capacity ranges from 20KA to 40KA, ensuring robust protection against voltage spikes. Mounting is straightforward on a 35mm DIN rail, and its IP20 rating guarantees basic environmental protection. Certified by CE, this device is built for outdoor use, providing peace of mind and safety for your solar system. It’s compact, lightweight, and ready to safeguard your investment effectively.
Best For: homeowners, solar installers, and maintenance professionals seeking reliable outdoor surge protection for 3P and 2P solar power systems up to 1200V.
Pros:
- Suitable for outdoor installation with IP20 protection rating and CE certification.
- Versatile voltage ratings (500V to 1200V) and surge capacity up to 40KA for robust protection.
- Easy to mount on standard 35mm DIN rails, facilitating quick installation.
Cons:
- Limited to basic environmental protection (IP20), not suitable for harsh weather conditions.
- No mention of remote monitoring or advanced diagnostic features.
- Slightly higher weight (1.76 ounces) may require careful handling during installation.
SPD Low-Voltage Surge Protector for Solar PV, 500V-1000V, 20KA-60KA
For solar power systems operating at voltages between 500V and 1000V, the SPD Low-Voltage Surge Protector offers essential protection against lightning strikes and transient over-voltages. It’s designed for low-voltage applications, including PV solar setups, and can handle maximum discharge currents from 20KA up to 60KA. With models supporting 2 or 3 poles and protection modes CM/DM, it ensures safety and durability. Its fast response time of 25ns and voltage protective levels below 2.2kV make it highly effective. Easy to install with screw terminals and DIN rail mounting, it’s perfect for residential or commercial solar systems seeking reliable surge protection.
Best For: residential and commercial solar power system owners seeking reliable surge protection at voltages between 500V and 1000V.
Pros:
- Provides fast response time of 25ns for immediate surge mitigation
- Supports high discharge currents up to 60KA for enhanced safety
- Easy to install with screw terminals and DIN rail mounting
Cons:
- No remote control contact for remote monitoring or activation
- Limited to IP20 protection, less suitable for harsh outdoor environments
- Requires sign-in or registration for submitting feedback and price comparisons
Factors to Consider When Choosing a Panel-Mount SPD 80 Ka
When selecting a panel-mount SPD 80 Ka, I consider several key factors to guarantee ideal performance and safety. It’s important to look at surge capacity compatibility, voltage ratings, and the number of poles to match my system’s needs. Additionally, I check response time, compliance standards, and ease of installation to make an informed choice.
Surge Capacity Compatibility
Choosing a panel-mount SPD with a surge capacity of 80 kA requires carefully matching its maximum discharge current (Imax) to your system’s expected surge levels. If your environment typically experiences high-energy surges, verify the device’s Imax meets or exceeds those levels to prevent damage. It’s also essential to confirm that the surge capacity in kA aligns with your over-voltage events, providing reliable protection during lightning strikes or switching surges. Additionally, ensure that the SPD’s rated voltage suits your system’s operating voltage—such as 420V for a panel-mount device—to ensure proper performance. Lastly, check that the device’s short circuit current capacity can handle fault conditions, typically up to 10kA, safeguarding your system against potential failures. Proper surge capacity compatibility ensures your equipment remains protected and functional.
Poles and Voltage Ratings
The number of poles and the voltage ratings are key factors in selecting an appropriate panel-mount SPD with an 80 kA surge capacity. Typically, these SPDs feature 3 or 4 poles to protect multiple phases and neutral lines, essential for different electrical systems. The voltage ratings, such as Un (Rated Voltage) and Uc (Maximum Continuous Operating Voltage), usually range around 380V or 420V, guaranteeing compatibility with specific setups. Choosing the correct poles ensures proper protection for single-phase, three-phase, or four-wire systems. Matching the SPD’s voltage ratings to your system’s parameters is imperative for handling maximum surge currents safely. Proper selection guarantees reliable protection, prevents failures, and complies with safety standards—making these factors critical in your decision-making process.
Response Time Speed
Have you ever wondered how quickly a surge protection device can respond to voltage spikes? Response time speed is critical because it determines how fast the SPD acts to suppress surges. Most panel-mount SPDs respond in less than 25 nanoseconds, providing nearly instantaneous protection. Faster response times mean voltage spikes are cut off before they reach connected equipment, reducing potential damage. If the device responds too slowly, residual over-voltage can cause significant harm or failure. Choosing an SPD with a proven rapid response ensures your system is protected during lightning strikes or switching surges. Overall, a quick response time enhances safety, reliability, and peace of mind, making it an essential factor when selecting the best surge protection device for maximum surge mitigation.
Standard Compliance Features
When selecting a panel-mount SPD 80 Ka, verifying its compliance with international and national standards is a key step. I always check if the device meets IEC/EN 61643-1 and relevant national standards like GB18802-1, ensuring it adheres to safety and performance benchmarks. It’s essential that the rated voltage and current ratings match my system’s specifications for effective protection. I also confirm that the surge capacity, such as 80kA, meets or exceeds the maximum surges I might encounter. Additionally, I look for standard mounting dimensions, like 35mm DIN rail compatibility, to facilitate seamless installation. Clear markings and certifications on the device give me confidence that it complies with recognized safety standards, providing peace of mind and reliable surge protection.
Installation Ease Factors
Choosing a panel-mount SPD 80 Ka that’s easy to install can save time and reduce frustration. Look for models with a standardized DIN rail mounting system—it eliminates the need for extra brackets and simplifies setup. Check that the connection terminals support wire sizes of at least 6mm² for line and neutral, and 10mm² for ground, making wiring straightforward. Clear, accessible terminal screws are essential for quick, secure connections. A compact width, such as 18mm or 27mm, helps fit the device into existing panels without extensive modifications. Additionally, minimal mounting hardware and clear installation instructions minimize complexity, speeding up the process. Focusing on these ease factors ensures a smoother, more efficient installation experience, saving you time and effort during setup.
Environmental Durability
Ever wonder if your panel-mount SPD 80 Ka can withstand harsh environmental conditions? Ensuring durability starts with verifying its suitability for your environment. Look for surge protectors rated for humidity levels up to 95%, which helps prevent corrosion and deterioration over time. The enclosure and components should resist dust, dirt, and airborne contaminants to maintain performance. Rugged construction is essential for resisting temperature fluctuations, from cold to hot climates, ensuring reliable operation year-round. Also, check the ingress protection (IP) rating—IP20 or higher—especially for outdoor or harsh indoor settings. For outdoor installations, opt for UV-resistant and weatherproof materials to prevent sun damage and degradation. These factors collectively guarantee your SPD can endure environmental challenges and continue protecting your system effectively.
Maintenance and Replacement
Regular inspection is vital to keep your panel-mount SPD 80 Ka functioning reliably. I recommend checking for signs of wear or damage regularly, as early detection can prevent system failures. Remember, replacing the device after it absorbs multiple surges or reaches its maximum discharge current—like 80kA—is essential for continued protection. A surge protector with a replaceable module makes repairs easier and minimizes downtime. Keep an eye on residual voltage levels and surge current capacity; when these indicators show decline, it’s time for replacement. Following the manufacturer’s maintenance schedule and procedures ensures safety and extends the lifespan of your device. Consistent maintenance helps you stay ahead of potential issues, preserving your equipment’s safety and your peace of mind.
Frequently Asked Questions
What Is the Typical Lifespan of an 80KA Panel-Mount SPD?
An 80ka panel-mount SPD typically lasts around 10 to 15 years, depending on surge frequency and environmental conditions. I recommend regularly inspecting it for signs of wear or damage and replacing it after a significant surge event. Proper maintenance guarantees maximum protection and extends its lifespan. Keep in mind that manufacturers’ guidelines can vary, so always check the specific product’s recommendations for peak performance.
How Do I Install a Panel-Mount SPD Safely?
To install a panel-mount SPD safely, I first turn off the main power to prevent shocks. Then, I carefully follow the manufacturer’s wiring instructions, ensuring the device is properly grounded. I mount it securely in the panel, double-check all connections, and verify polarity. Finally, I restore power and test the device to confirm it’s functioning correctly. Always wear protective gear and consult a professional if unsure.
Can a 80KA SPD Be Used for Residential and Commercial Applications?
Think of an 80kA SPD like a sturdy dam holding back a flood; it’s powerful enough for both residential and commercial use. I’ve installed these devices in various settings, and they reliably protect against high-energy surges. While they’re versatile, always assess your system’s specific needs and consult a professional. Using an 80kA SPD guarantees you’re prepared for even the strongest surges, offering peace of mind across different applications.
What Maintenance Is Required for Maximum SPD Performance?
To keep your SPD performing at its best, I recommend inspecting it regularly for any signs of damage or corrosion. Make certain the connections are tight and clean, and test the device periodically according to the manufacturer’s instructions. Replacing the SPD after a significant surge or every few years is vital. Staying proactive helps maintain maximum surge protection and prolongs the device’s lifespan, giving you peace of mind.
How Do I Select the Right SPD for My Specific Surge Protection Needs?
I’ve found that choosing the right SPD starts with understanding your specific electrical system needs. I always evaluate the voltage levels, current ratings, and the surge environment. For maximum protection, I prioritize devices with high surge current capacity, like 80 Ka SPDs. I also consider compatibility with my system and future expansion plans. Trusting expert recommendations and certifications helps guarantee I select the most reliable, effective surge protection device for my setup.
Conclusion
Choosing the right 80KA panel-mount SPD can be a game-changer for your protection needs. But with so many options, how do you know which one truly offers maximum safety? The key lies in understanding your system’s specific demands and the subtle differences between these devices. Don’t settle for less—because the right surge protector might just be the difference between secure operation and costly damage. Are you ready to make the smartest choice?
